Libelium offers a fantastic range of sensors and kits. There a number of features that puts Libelium head and shoulders above the reason

Easy and fast deployment

Compatible with any Cloud platform

Market-read, fully certified

Minimum maintenance costs

Services and network scalability

General Technical Features

Robust waterproof IP65 enclosure

10 models integrating more than 120 sensors

Add or change a sensor probe in seconds

Solar powered with internal and external panel

Radios: 802.15.4, 868, 900, WiFi, 4G, Sigfox and LoRaWAN

Over the Air Programming (OTA)

Specifically designed brackets ready for street lights installation

Fully certified for most markets:
-
CE
-
FCC
-
IC
-
ANATEL
-
RCM
-
PTCRB
-
AT&T
Â
Libelium - Technical Features
Â
Sensor Probes

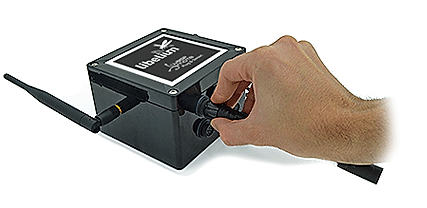

Change sensor probes in just seconds
Sensor probes can be attached easily by just screwing them into the bottom sockets. This allows you to add new sensing capabilities to existing networks in just minutes.
In the same way, sensor probes may be easily replaced in order to ensure the lowest maintenance cost of the sensor network.
Solar Powered

External and Internal Solar Panel
Battery can be recharged using the internal or external solar panel options (common USB-recharging is of course another option).
The external solar panel is mounted on a 45Âş holder which ensures the maximum performance of each outdoor installation.
For the internal option, the solar panel is embedded on the front of the enclosure, perfect for use where space is a major challenge.
The rechargeable battery has a load of 6600 mAh, which ensures non stop working time during the weeks where the sunlight is lower.
Â
Â
Installation
External and Internal Solar Panel
Waspmote Plug & Sense! counts with holders specially designed for outdoor installations in street-lights and building fronts.

Metal cable ties are provided to easily adjust the node to street light posts.
​
Installation can be done in minutes as you only need to tie the cables on the enclosure holders and then to the post. Once the node is secured just press the on button and the node will start to automatically send the data gathered from the sensors to the Gateway.
Â
Radio Frequencies
High sensitivity and transmission power

There are multiple radio options in order to communicate the sensor nodes with the Gateway. 802.15.4, 868 and 900 are used commonly in order to create local, start topologies. WiFi can be used to connect with any WiFi AP while the 4G radio can be used to send the sensor data directly to the Cloud without using an intermediate Gateway. Sigfox and LoRaWAN modules are special for IoT applications and get very long range links.

802.15.4 (2.4Ghz) Europe and World

RF (868 Mhz)

RF (900 Mhz) US, Brazil and Australia

WiFi (2.4 Ghz)

4G, Europe/Brazil, USA , Australia

Sigfox: Europe and USA

LoRaWAN: Europe and USA
Â
Geolocation Tracking + Sensing

Real-time tracking applications
The 4G module features a GPS receiver which allows for real-time tracking applications.
​
The idea is simple: read the GPS coordinates (longitude and latitude) and send them by using a HTTP request to a web server along with extra information from the sensors included in the node. Then use a browser to load the PHP webpage which uses Google Maps to show the location in real-time.
Â
Industrial Protocols

Plug & Sense! units are able to connect with the most common industrial communication protocols: RS-232, RS-485, Modbus, 4-20 mA (current loop) and CAN Bus.
This feature opens a wide variety of applications for industrial sensing and automation, military, automobile, vehicle tracking or remote factory management.
Connect your industrial devices to Plug & Sense!
Typical use cases:

All sensors connection to Industrial Bus

Add wireless connectivity to wired bus

Connect Industrial devices to the Cloud
Â
External SIM Sockets
Choose your own Mobile Network Operator
Plug & Sense! models with 4G radio have an External SIM socket which allows developers to easily add and change a carrier SIM card in order to connect the devices to any 4G / 3G / GPRS / GSM cellular network.

Â
Certifications

Libelium Sensors are ready for most markets
Plug & Sense! is the first IoT sensor platform to be fully certified:

CE ( Europe)

FCC (USA)

IC (Canada)

ANATEL (Brazil)

RCM (Australia)

PTCRB (Cellular certification for USA)

AT&T (Cellular certification for USA)
Â
Data to the Cloud

Complete all-in-one Gateway
The sensor data gathered by the Waspmote Plug & Sense! nodes is sent to the Cloud by Meshlium, the Gateway router specially designed to connect Waspmote sensor networks to the Internet via Ethernet and 4G interfaces.
